Recorders

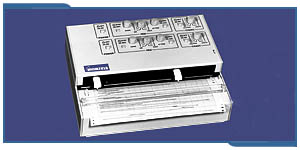

The Brookfield Model 201 and 202 Strip Chart Recorders offer low price and 200 mm chart width in a compact unit.
- One pen (201) or two pen (202) versions
- Can be used with all Brookfield digital Viscometers/Rheometers
- Small Size: requires very little bench space
- Wide selection of input voltages
- Current signal input also possible
- Multi-speed
- Accuracy: ±0.5% of full scale
The recorders are supplied with:
- 115 VAC or 230 VAC power adapter
- Roll of paper
- Pens (one for 201; two for 202)
- Analog output cable (Viscometer/Rheometer to recorder)
Specifications
Input Ranges: 1,2,5,10,20,50,100,200,500 mV1,2,5 V
Accuracy: ±0.5% of full scale
Attenuation: 5:1
Chart Speeds: 1,2,5,10,20,30 cm/min and cm/hr
Chart Width: 200 mm (8")
Printers
Printers are available from Brookfield for use with KU-1+, Programmable DV-II+, DV-III+, and CAP series Viscometers/Rheometers. Both serial (RS-232) and parallel (Centronics) versions available. Please contact Brookfield for more information.
|
