Viscosity Standard Fluids
Brookfield Viscosity Standard Fluids provide a convenient, reliable way to verify the calibration of your Brookfield Laboratory Viscometers/Rheometers. Brookfield Viscosity Standards are Newtonian, and they are available as either silicone or oil.
Silicone Viscosity Standards
- Accuracy ±1%
- Excellent temperature stability
- Special viscosity values and temperatures available upon request
- Recommended for use with Brookfield and most other rotational viscometers
- Most economical
Oil Viscosity Standards
- Accuracy ±1%
- Appropriate for use at shear rates greater than 500 sec-1
- Recommended for use with Cone/Plate viscometers at viscosities above 5000 cP
- Recommended for Brookfield CAP series and KU-1+ viscometers

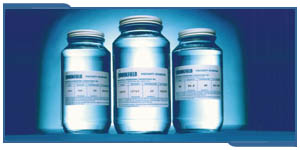

Brookfield Viscosity Standard Fluids are accurate to ±1% of the stated viscosity and are certified by methods traceable to the United States National Institute of Standards and Technology (NIST). The selection of one or two fluids will normally provide sufficient measurement points to verify calibration of your instrument. All fluids are supplied in ½ liter (1 pint) containers and with a certificate of calibration.
Special Order Silicone Fluids
- Viscosity Blends at 25oC (77oF)
Fluids may be ordered with viscosities other than those listed for general purpose silicone fluids.
- Minimum: 5 cP (mPaos)
- Maximum: 60,000 cP (mPa·s)
- Blends will be within ±2% of requested value
- Temperature Calibrations
General purpose or blended fluids may be calibrated at temperatures other than 25oC (77oF).
- Minimum: 20oC (68oF)
- Maximum: 80oC (176oF)
- Minimum temperature increment: 2oC
GENERAL PURPOSE SILICONE FLUIDS
Brookfield Silicone Viscosity Standards provide a convenient, reliable means of checking the calibration of most Brookfield Viscometers/Rheometers. These fluids, calibrated at 25oC (77oF), are available in 11 different viscosity ranges.
Brookfield
Part #
|
Nominal Viscosity
cP (mPa·s)
|
Specific
Gravity
|
5 cps
10 cps
50 cps
100 cps
500 cps
1000 cps
5000 cps
12500 cps
30000 cps
60000 cps
100000 cps
|
5
10
50
100
500
1000
5000
12500
30000
60000
100000
|
0.920
0.940
0.960
0.968
0.972
0.972
0.972
0.973
0.973
0.973
1.000
|
HIGH TEMPERATURE SILICONE FLUIDS
These fluids are recommended for use with the Brookfield Accessory.
Brookfield
Part #
|
Nominal Viscosity
cP (mPa·s)
|
Temperature
|
oC
|
oF
|
HT 3000
|
30,000
|
25.0
|
77
|
9,000
|
93.3
|
200
|
4,500
|
149.0
|
300
|
HT 60000
|
60,000
|
25.0
|
77
|
18,000
|
93.3
|
200
|
9,000
|
149.0
|
300
|
HT100000
|
100,000
|
25.0
|
77
|
30,000
|
93.3
|
200
|
51,000
|
149.0
|
300
|
KU-1+ OIL FLUIDS
These oils are recommended for use with Brookfield KU-1+ Viscometers
Brookfield Part#
|
Nominal Viscosity Krebs Units
|
Temp oC
|
KU64
KU79
KU84
KU95
KU106
|
64
79
84
95
106
|
25.0
25.0
25.0
25.0
25.0
|
SPECIAL PURPOSE OIL FLUIDS
These oils are recommended for use with Cone/Plate and coaxial cylindar geometry at viscosities above 5,000 cP (mPa·s) or measurements at shear rates above 500 sec-1
Brookfield
Part #
|
Nominal Viscosity
|
Temp o
|
B31
B210
B750
B1400
B2000
B11000
B20000
B80000
B200000
B420000
|
31
210
750
1,400
2,000
11,000
20,000
80,000
200,000
420,000
|
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
|
CAP OIL FLUIDS
These oils are recommended for use with Brookfield CAP Series Viscometers
LOW TEMPERATURE CAP OIL FLUIDS (5o to 75o)
|
Brookfield Part#(1)
|
Nominal Viscosity cP (mPa·s)
|
Temp oC
|
CAP1L
CAP2L
CAP3L
CAP4L
CAP5L & 1H
CAP6L & 3H
|
100
210
400
750
1,400
140
4,900
380
|
25.0
25.0
25.0
25.0
25.0
60.0
25.0
60.0
|
HIGH TEMPERATURE CAP OIL FLUIDS (50o to 200oC)
|
Brookfield Part #(2)
|
Nominal Viscosity cP (mPa·s)
|
Temp oC
|
CAP5L & 1H
CAP2H
CAP6L & 3H
CAP4H
CAP5H
CAP6H
|
140
280
380
730
1,400
4,700
|
60.0
60.0
60.0
60.0
60.0
60.0
|
Notes:
(1) The Part # designates which fluid to choose for each cone spindle, i.e. CAP3L - use with cone/spindle #3 (low temperature CAP).
(2)CAP5L & 1H: Use with spindle #5 (low temperature CAP) and cone spindle #1 (high temperature CAP).
|
